Where the parts go
Machined components supplied to foundries and to OEMs in six sectors, domestic and export — including approved supply into public sector undertakings.

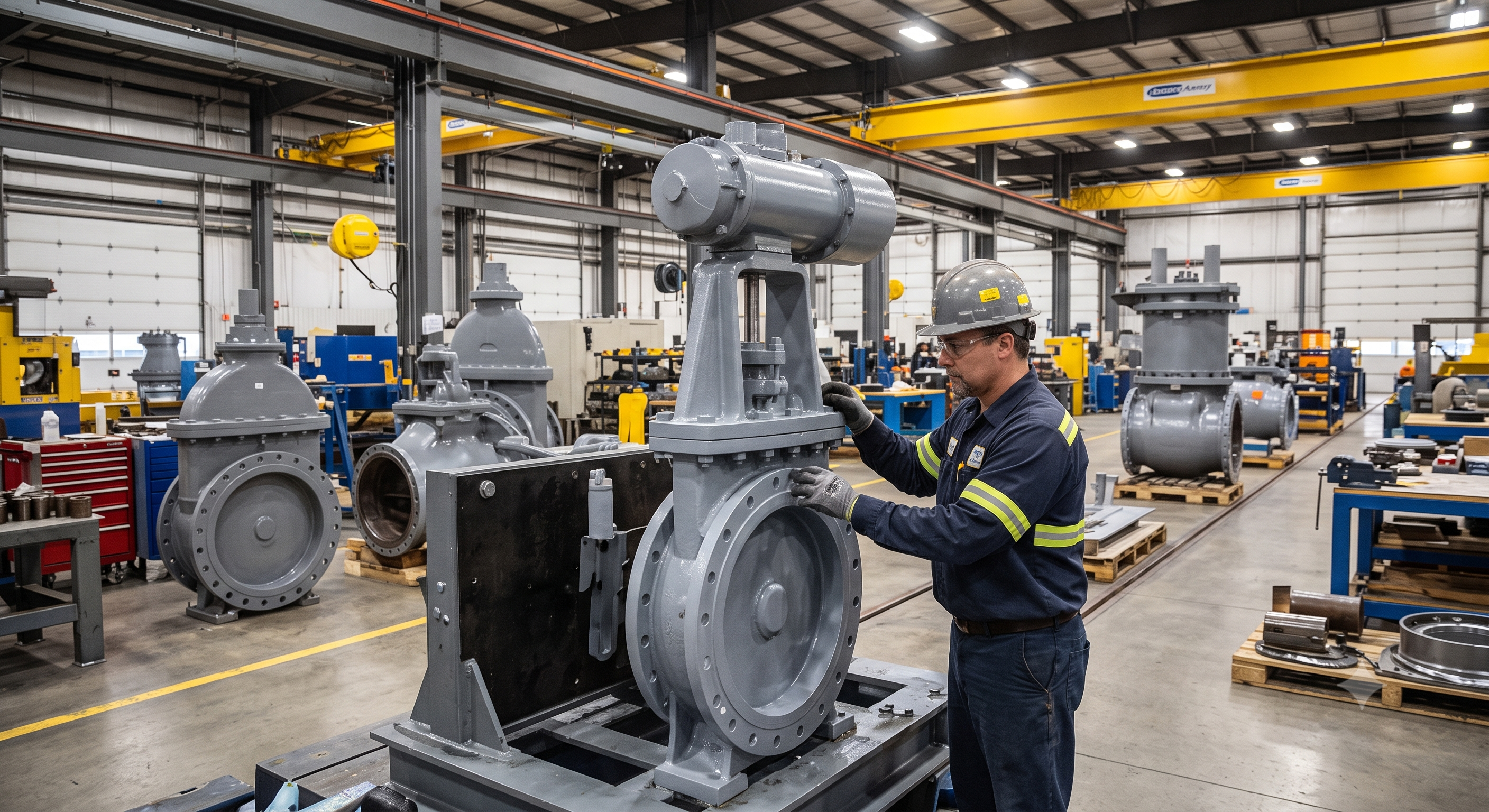

Valve manufacturing
Bodies, covers and flanged components in carbon and stainless steel, machined to the seat and flange faces.

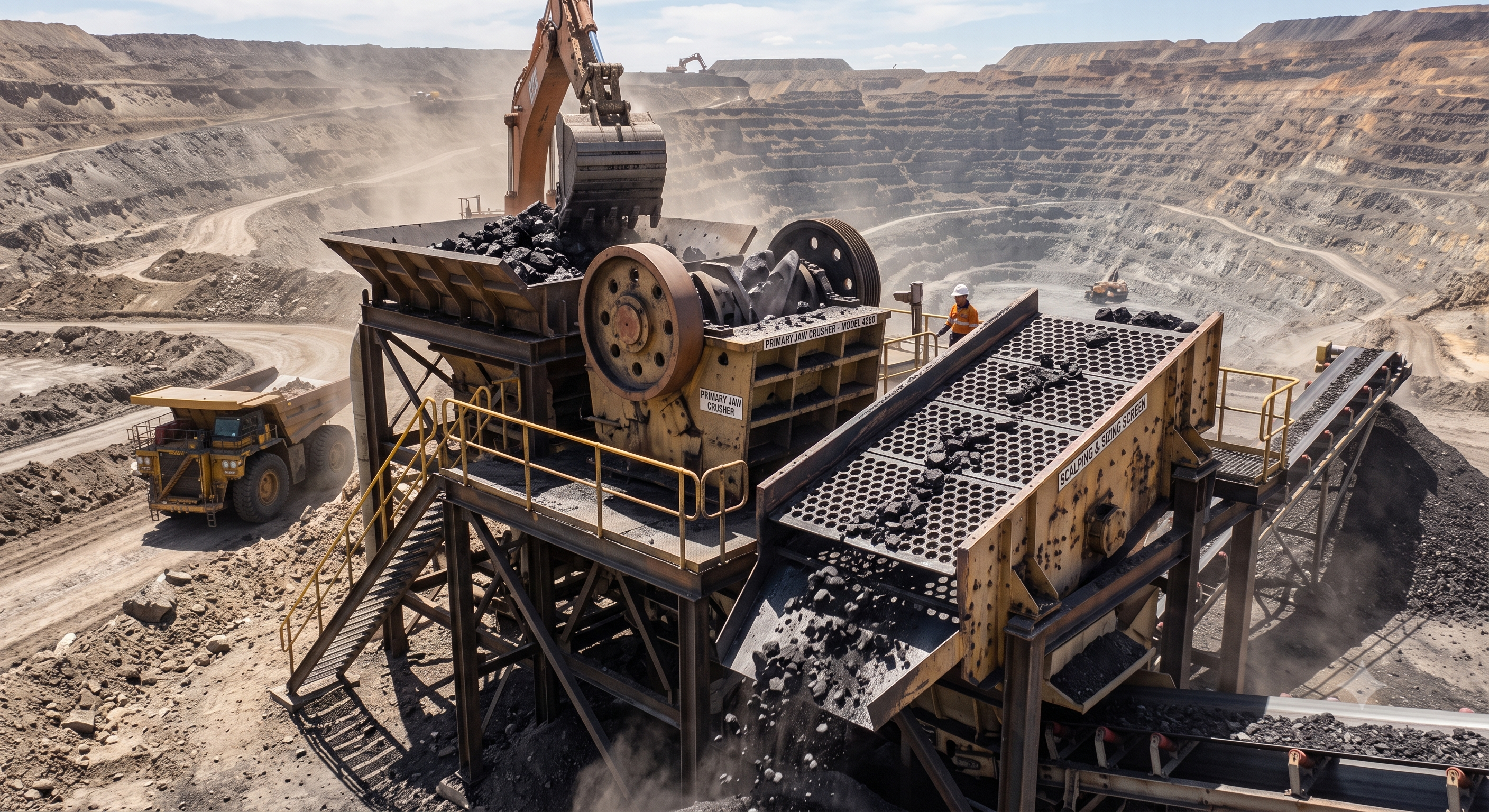

Mining, quarry & cement
Crusher, mill, screen and feeder spares for pits, quarries, mineral processing plants and cement works.

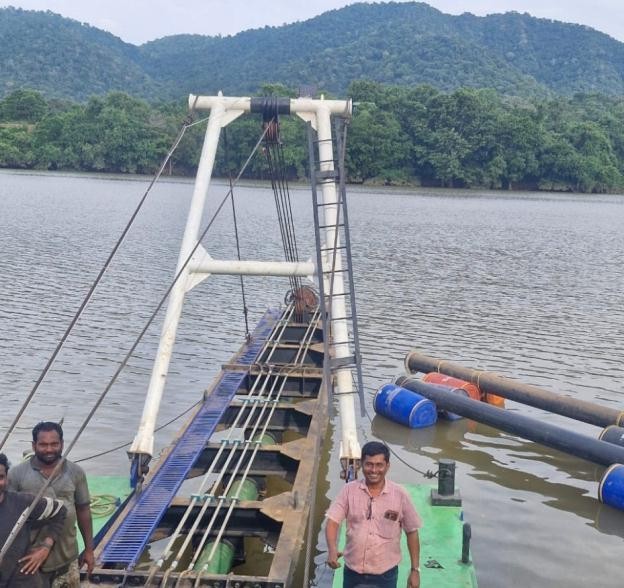

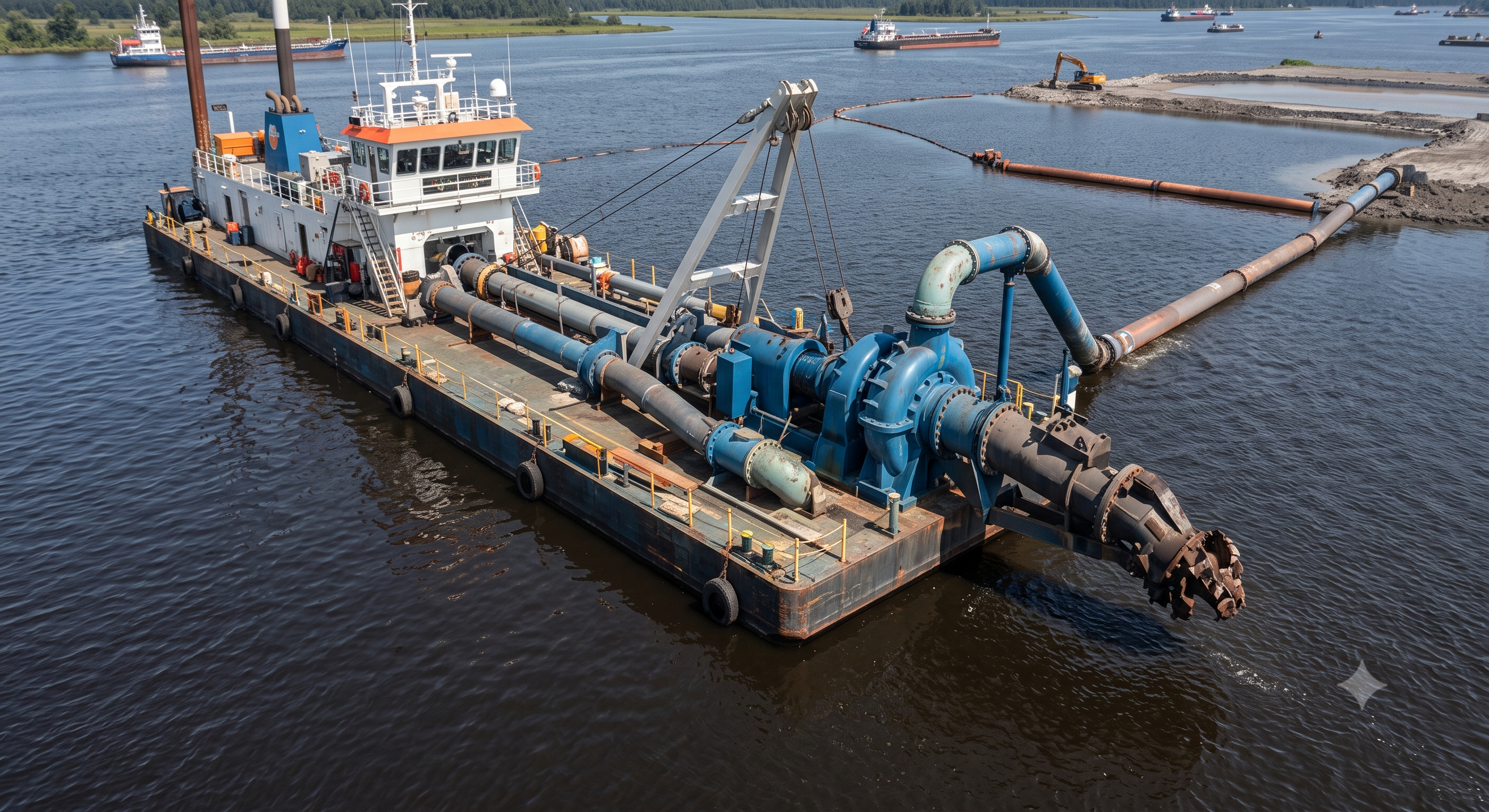

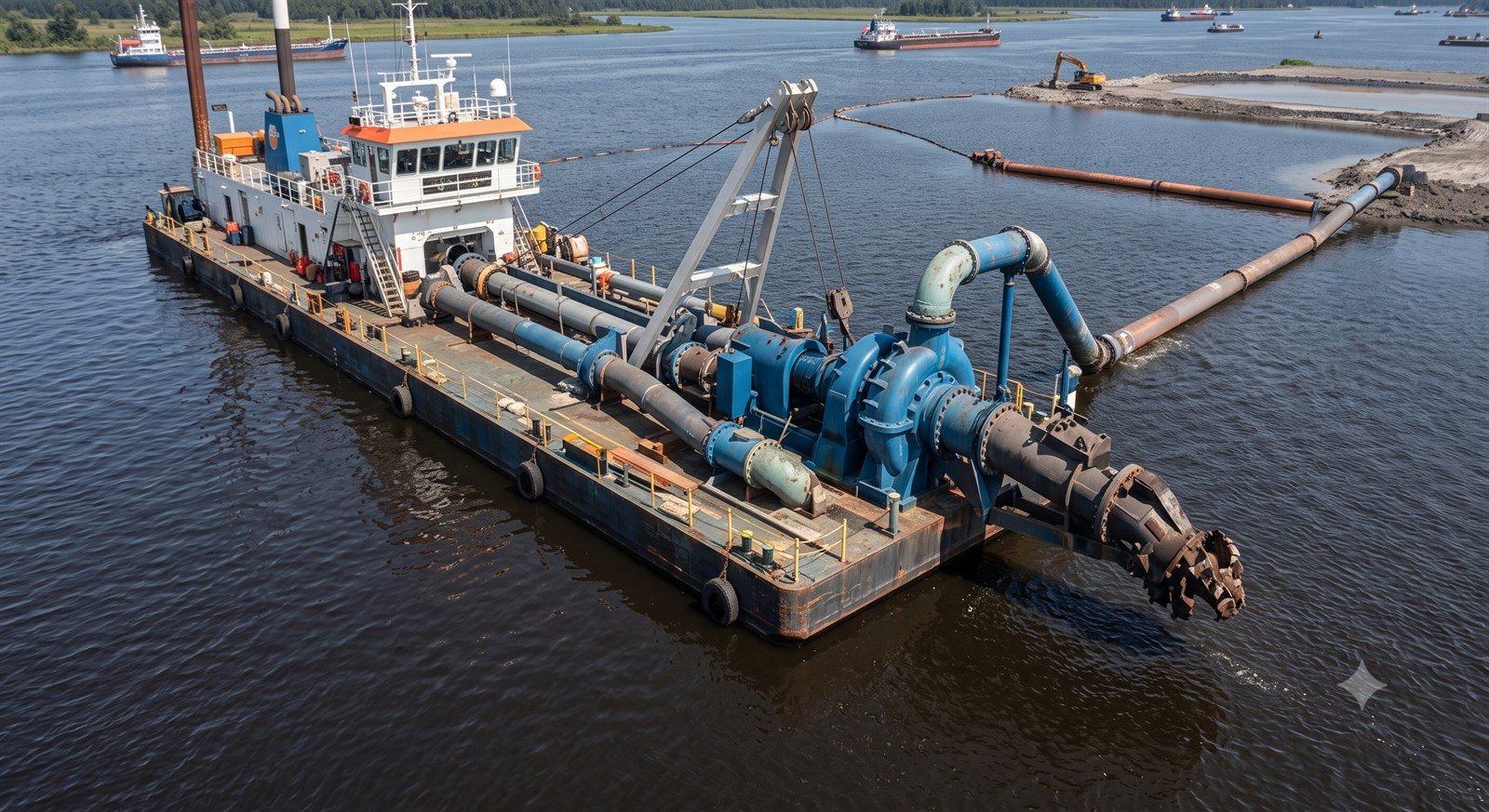

Dredging
Pumps, cutters and wear parts for clearing sludge in dams, sea ports and backwaters.
Valve
Bodies, covers and flanged components in carbon and stainless steel.
Mining
Crusher spares, bearing housings, sprocket wheels, rollers and idlers.
Mineral process
Mill cells, wear liners and metallurgical processing equipment spares.
Cement
Roller mill cells, feeder and conveyor spares for cement plants.
Quarry
Jaw, cone, impact and VSI crusher spares for aggregate and M-sand.
Dredging
Dredging pumps and cutters for dams, sea ports and backwaters.
Twelve groups, machined here
Photographs are of components machined at the works. Drawings and part numbers on request.

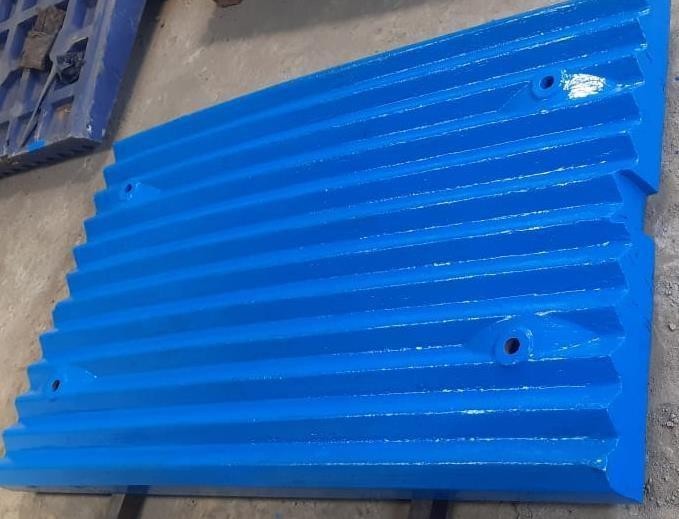

Jaw crusher castings
Machined jaw plates, cheek plates and jaw crusher spares.

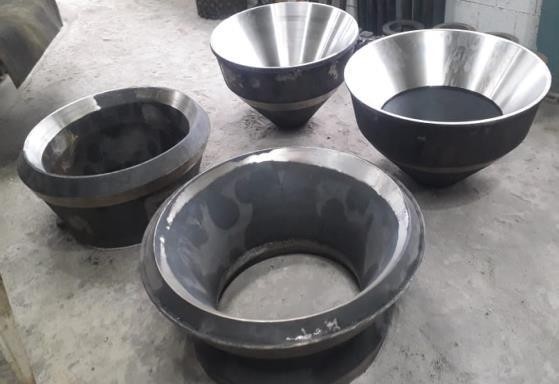

Cone crusher spares
Mantles, bowl liners and adapter rings — domestic and export orders.

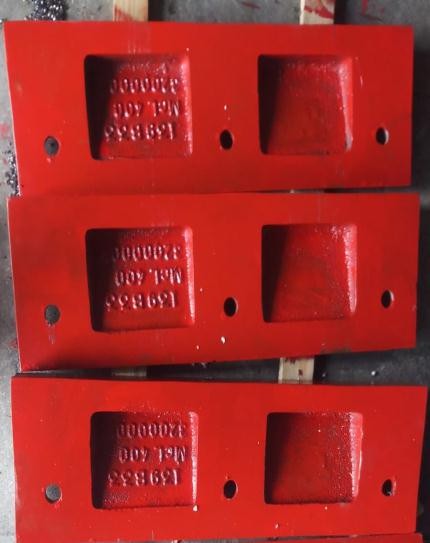

Impact crusher spares
Blow bars, hammers and mill spares in high chrome, manganese and nickel.

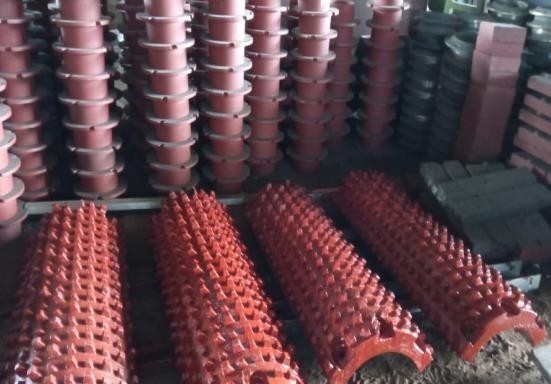

Roller crusher & feeders
Minerals and coal impact rollers, apron feeder support rollers and spares.

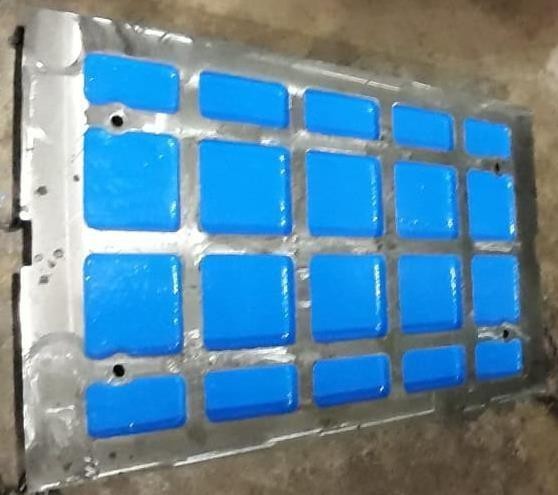

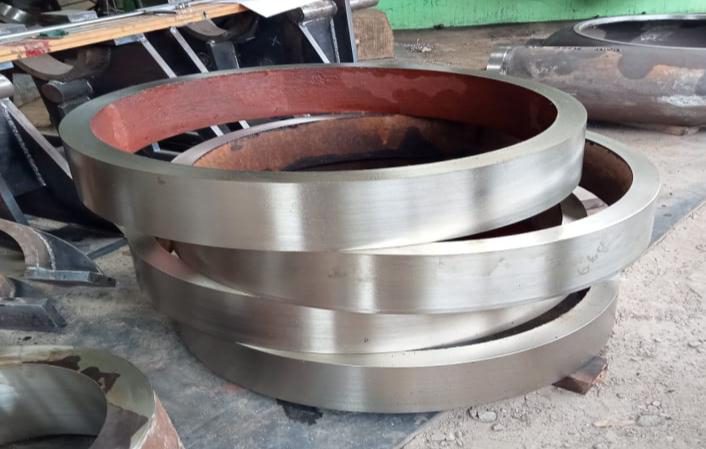

Mill cells & wear liners
3 and 5 roller mill cells and liners in high manganese and 28% high chrome.

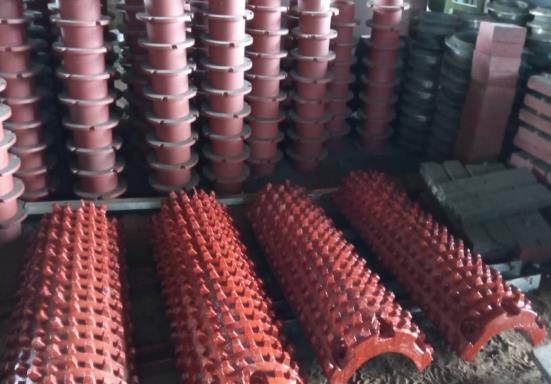

Sizer segments
Segment spares for coal crushing units — Mn steel and 28% high chrome.

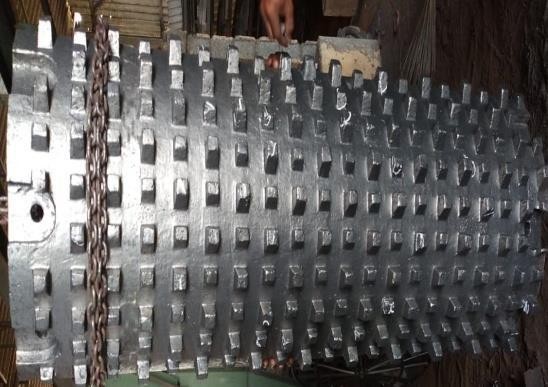

Roll crusher segments
Machining and assembly inspection — 1600 mm long, 600 kg each.

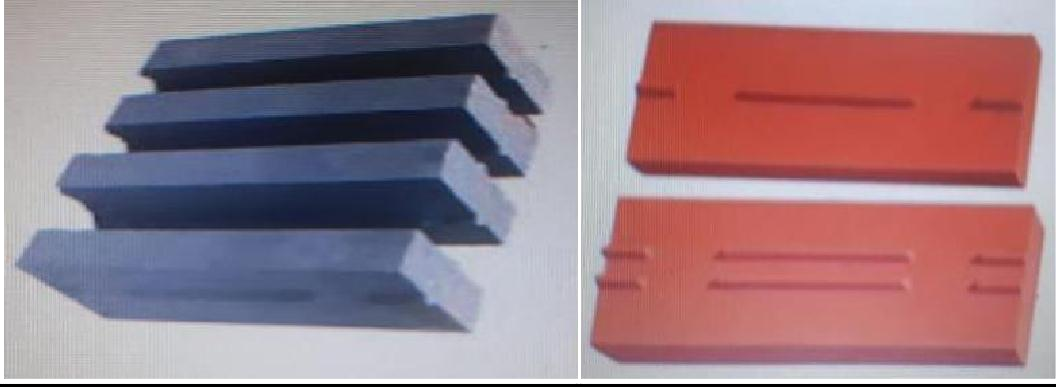

VSI tips & spares
Vertical shaft impact crusher tips and spares for M-sand manufacturing.

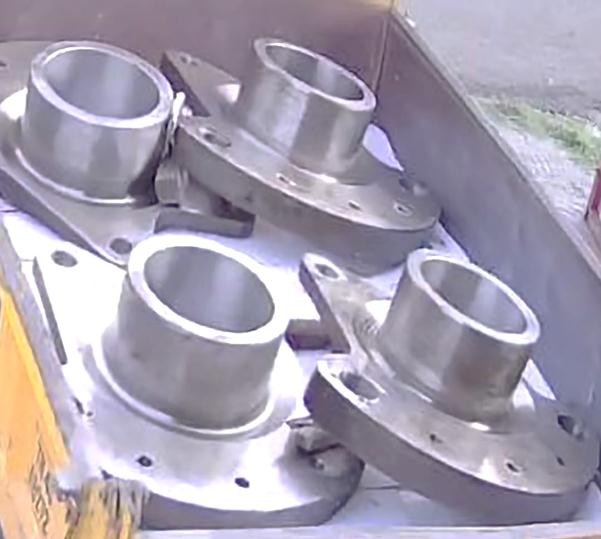

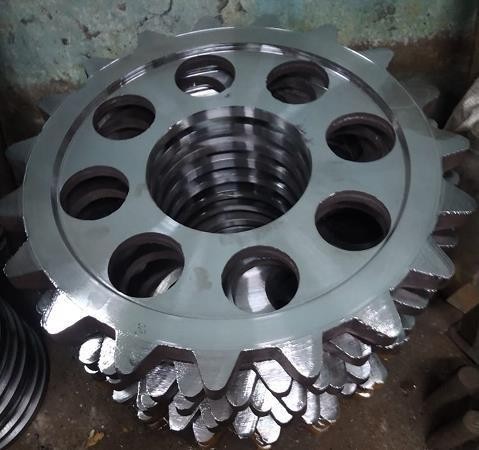

Housings & wheels
Bearing housings, sprocket wheels, guide rollers, pulleys and idlers.

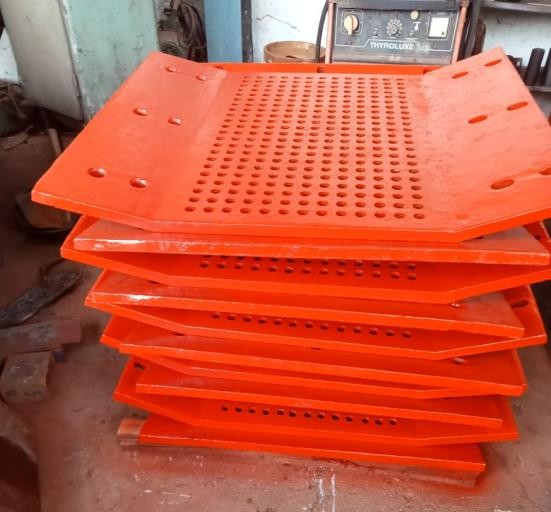

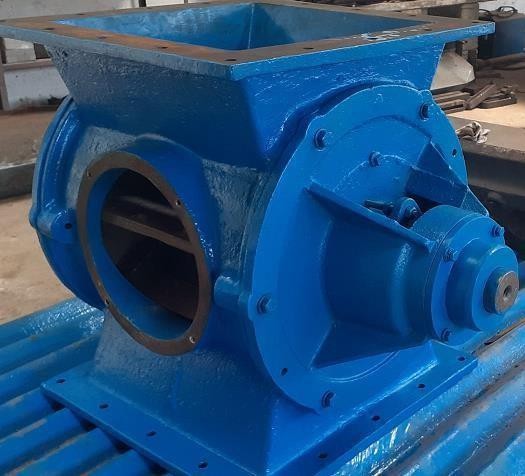

Feeders & screen plates
Rotary and apron feeders and screen plates in cast steel, Mn and high chrome.

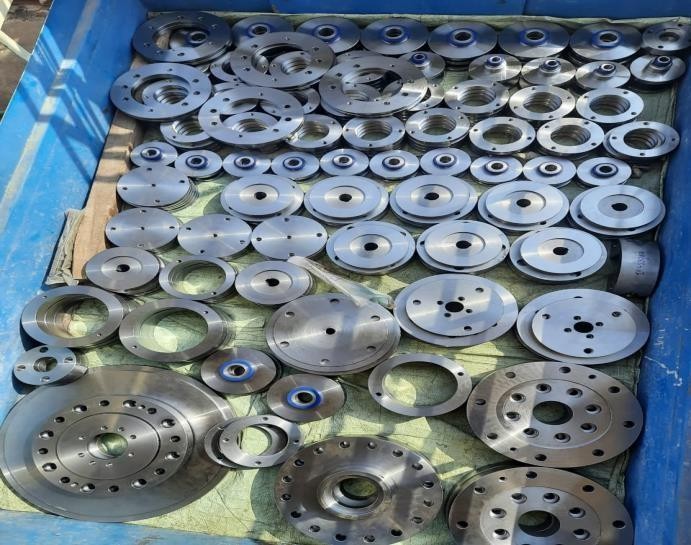

Precision batch work
Non-standard batches: flanges to 300 kg, bearing covers to 180 kg, machined and drilled.

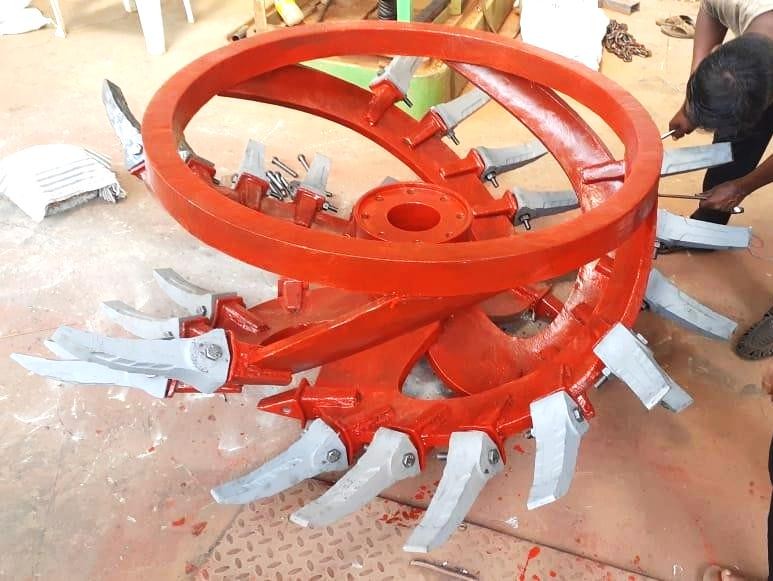

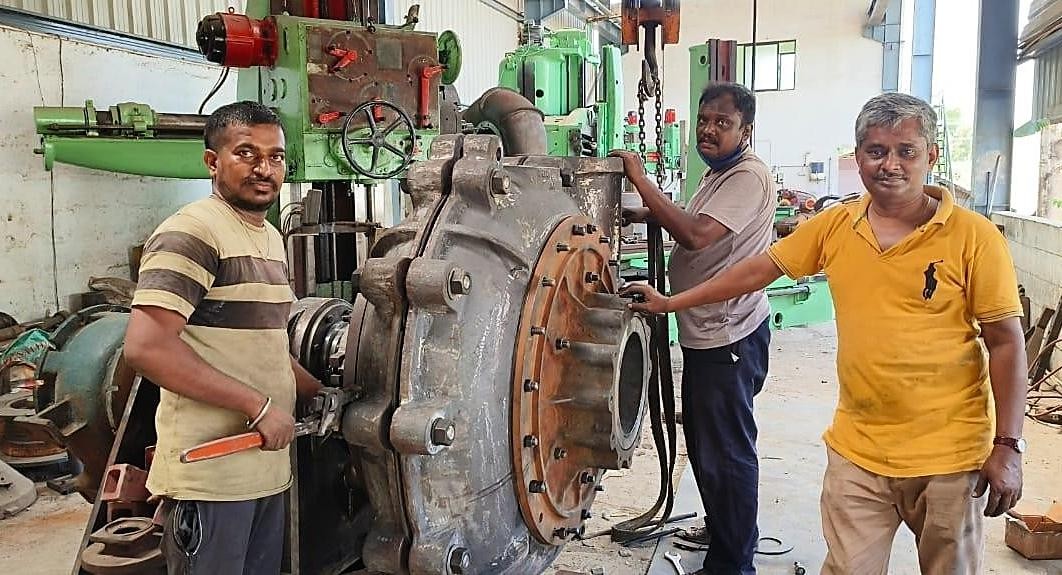

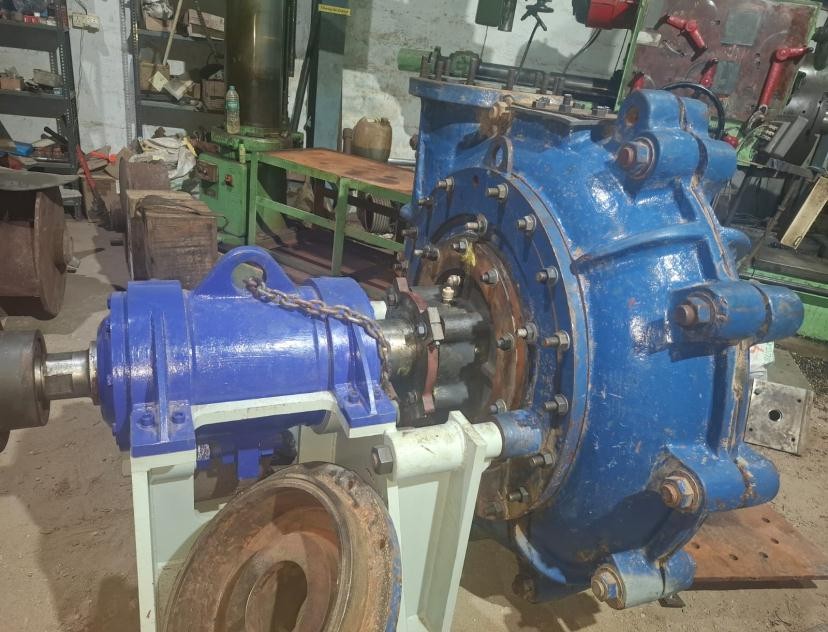

Dredging pumps & cutters
12" output pumps, 600–900 HP engine drive, and cutters for dams and sea ports.
| No. | Component group | Description |
|---|---|---|
| 01 | Jaw crusher castings | Machined jaw plates, cheek plates and jaw crusher spares |
| 02 | Cone crusher spares | Mantles, bowl liners and adapter rings — domestic and export |
| 03 | Impact crusher spares | Blow bars, hammers, mill spares — high chrome, manganese, nickel |
| 04 | Roller crusher & feeders | Minerals and coal impact rollers, apron feeder support rollers |
| 05 | Mill cells & wear liners | 3 and 5 roller mill cells — Mn steel and 28% high chrome |
| 06 | Sizer segments | Segment spares for coal crushing units |
| 07 | Roll crusher segments | Machining and assembly inspection — 1600 mm, 600 kg each |
| 08 | VSI tips & spares | Vertical shaft impact crusher tips for M-sand manufacturing |
| 09 | Housings & wheels | Bearing housings, sprocket wheels, guide rollers, pulleys, idlers |
| 10 | Feeders & screen plates | Rotary feeder, apron feeder and screen plates |
| 11 | Precision batch work | Flanges to 300 kg, bearing covers to 180 kg, machined and drilled |
| 12 | Dredging pumps & cutters | 12" output, 600–900 HP engine drive pumps and cutters |

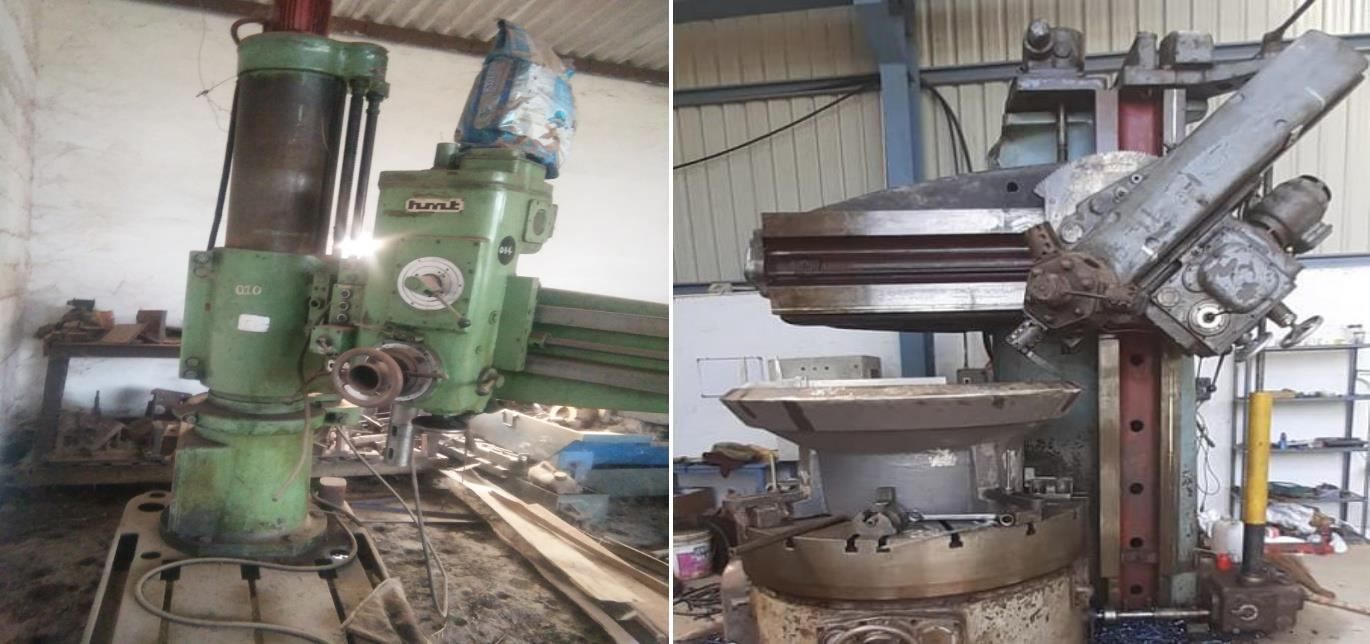

The machine list, in full

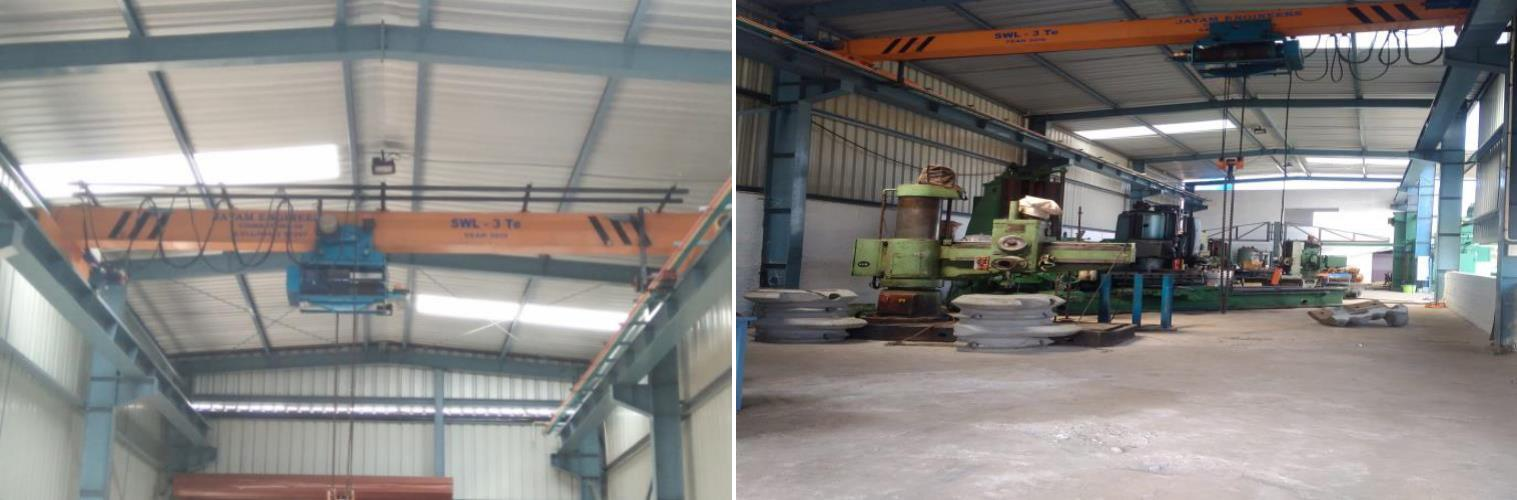

German and Czech heavy machine tools — WMW Niles, Barthize, Wetzel and TOS — with DRO on the turning and boring machines, served by a 4 MT overhead crane. Proof machining and finish machining both run in the same 3,000 sq ft covered bay.
| № | Machine | Make & origin | Capacity |
|---|---|---|---|
| 01 | Vertical lathe VTL-01 | WMW Niles 1800, Germany — double column, double ram | Chuck ⌀1810 · swing ⌀2100 × 1500 ht · DRO |
| 02 | Vertical lathe VTL-02 | Barthize 1500, Germany | Chuck ⌀1410 · swing ⌀1600 × 900 ht · load 3000 kg |
| 03 | Horizontal boring HBM-01 | Wetzel 125 spindle, Germany | 1600 × 1400 × 1400 XYZ · load 3000 kg · 3-axis DRO |
| 04 | Horizontal boring HBM-02 | TOS 80 spindle, Czech Republic | 1100 × 1000 × 1000 XYZ · load 1500 kg · 3-axis DRO |
| 05 | Centre lathe | MMD 12', India | Swing ⌀600 × 1200 long |
| 06 | Radial drilling | HMT RM62, India | 75 mm drilling dia |
| 07 | Overhead crane | Jayam 4 MT, India | 3 MT lifting capacity |
| 08 | Welding & gouging | ADOR Thyristor 600 A, India | Arc cutting, gouging, welding to 8 SWG |
| 09 | Welding rectifier | Infotech 400 A, India | 8 SWG welding |
| 10 | Air compressor | ELGI, India | 10 HP |
Casting in, component out
Proof machining
Castings marked and rough machined to prove the drawing before stock is committed — the foundry gets an answer early.
Finish machining
Turning, boring, drilling and welding operations completed to drawing on the VTLs and boring machines.
Sample & PPAP support
Sample inspection, production part approval and development services for new components.
Inspection
Dimensional inspection with a portable CMM at the machine, on components up to full swing.

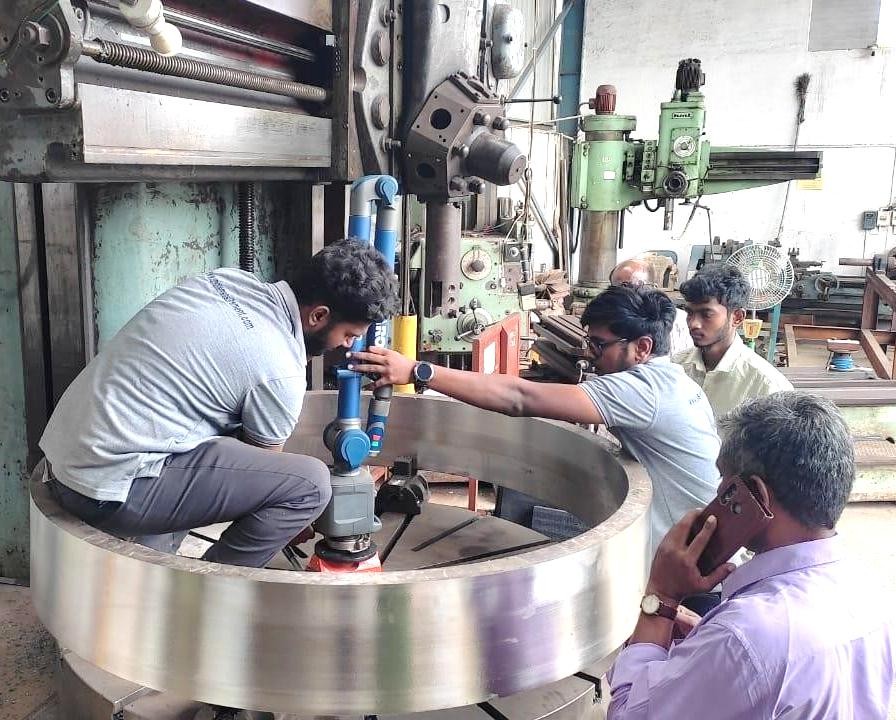

Measured on the machine
Components are inspected with a portable CMM without leaving the setting, so a correction can be taken while the part is still clamped. The team carries qualified, experienced people in foundry, machining process, quality control and NDT.
Inspection reports issued with despatch. Third-party inspection accommodated at the works on notice.
Send the drawing. We will quote it.
For repeat orders, quote the part number and we will machine to the last approved revision.
D. No. 14/364, Bharathi Nagar
Thudupathy (Po), Perundurai (Tk)
Erode District, Tamil Nadu 638 057
+91 94437 21323
thekingengineeringcompany@gmail.com
GSTIN 33AALFT1164B1ZK
Machines, materials and scope
What a purchase manager needs before releasing a drawing: the machines that will hold the part, the materials cut, and the scope of work taken on.

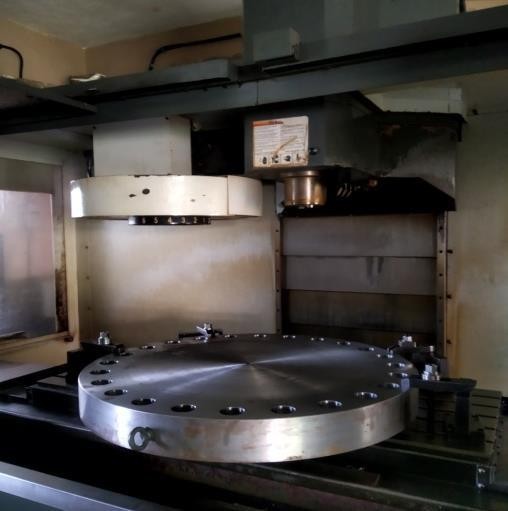

Vertical turning
Faces, bores, tapers and grooves on mantles, bowl liners, rings, covers and pulleys — two vertical lathes, both with DRO.

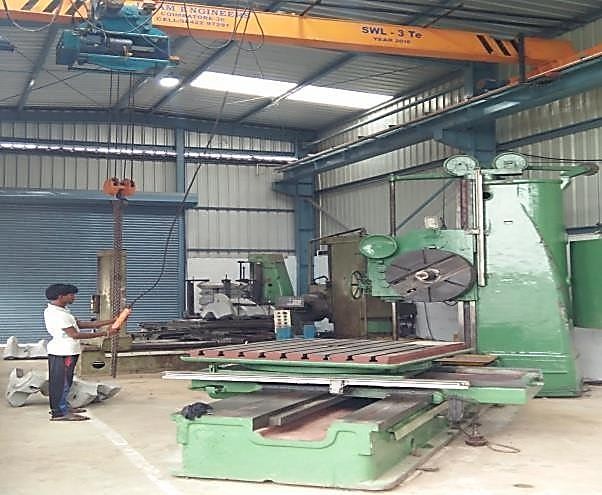

Horizontal boring
Bores, faces and hole patterns on housings, frames and segments held in one setting, on 125 mm and 80 mm spindle machines.
Turning & drilling
Shafts, sleeves and covers on the centre lathe; hole patterns and tapping on the radial drill up to 75 mm diameter.
Welding & gouging
Arc cutting, gouging and welding up to 8 SWG electrodes — weld preparation, build-up and fabricated assemblies.
Assembly
Segment and cutter assemblies built and inspected complete — roll crusher segments, cutter heads and pump units.
Inspection
Portable CMM measurement at the machine, plus sample inspection and PPAP support for new parts.
| Material | Typical components |
|---|---|
| Carbon steel castings | Valve components, housings, flanges, feeder bodies |
| Stainless steel | Valve bodies and covers, precision batch work |
| High manganese (Mn) steel | Jaw plates, mill cells, sizer and roll crusher segments |
| High chrome 28% | Blow bars, wear liners, screen plates, dredge pump parts |
| High nickel | Impact crusher hammers and mill spares |
| Heat resistant steel | Furnace and process equipment components |
| Alloy steel castings | Rollers, sprocket wheels, shafts and covers |
- Machining of steel and iron castings — proof machining and finish machining
- Supply of pre-machined and machined components
- Sample inspection, production part approval (PPAP) and development services
- Single piece weight from 5 kg to 3,000 kg
- Domestic and export orders
Established 2017, on 35 years of experience

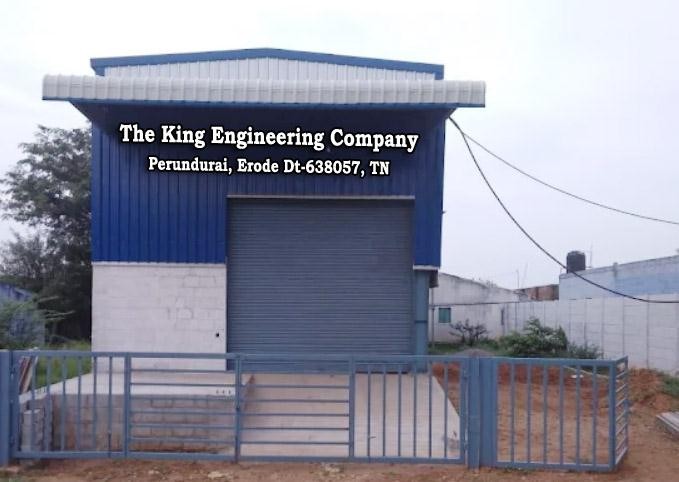

The King Engineering Company was established on 20 June 2017 to machine and supply steel and alloy castings for foundries and for customers in the valve, minerals process, mining, cement and quarry industries. The works is owned, covered and served by its own overhead crane.
Quality service on time
Delivery commitments made against real machine loading, not optimism.
Best practice & system
Implementing manufacturing practice and systems that hold as the shop grows.
A qualified team
Experienced professionals in foundry, machining process, quality control and NDT.
V. T. Panneer Selvam
Thirty-five years in the foundry and machining trade before founding the company.
Situated near Perundurai, Erode, on the Cochin–Salem highway — the same 70 minutes from the Coimbatore foundry cluster, so castings move between foundry and machine shop in a single day.
CSR training programme conducted at the works for local engineering students.
